SHANLING CONTINUED

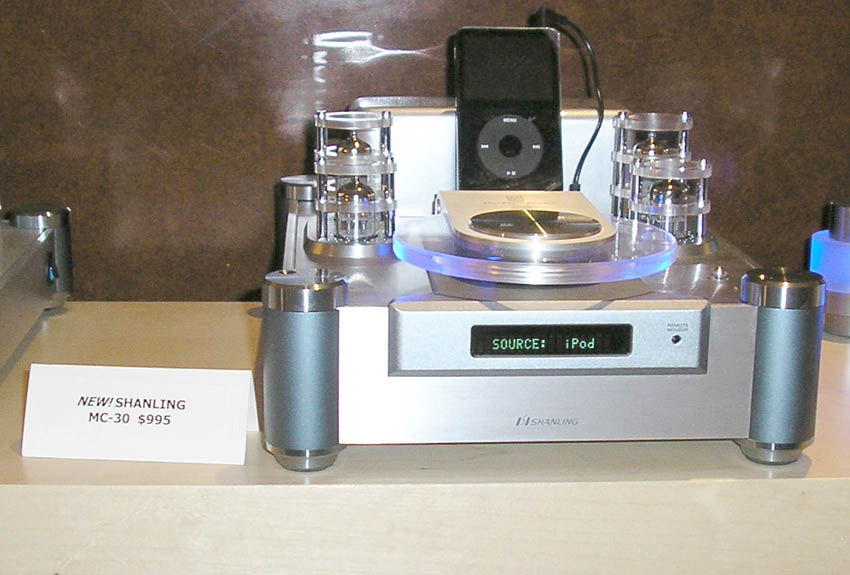

MC-30 MUSIC CENTER with SET output, CD player, tuner and I-pod dock plus pair of matching speakers. $995.
Philips VAM-12 pick-up mechanism coupled with CD-7II servo system for low jitter tracking.
Classic tube amplification presented in stylish aesthetics.
D/A conversion is accomplished by Burr-Brown PCM1738 DAC chip.
High-quality FM/AM tunmg system.
2x6P1 single-ended tube output stage.
Mini multi-functional lever, concealed input selector and volume control.
All aluminum chassis with cylindrical support and internal screening.

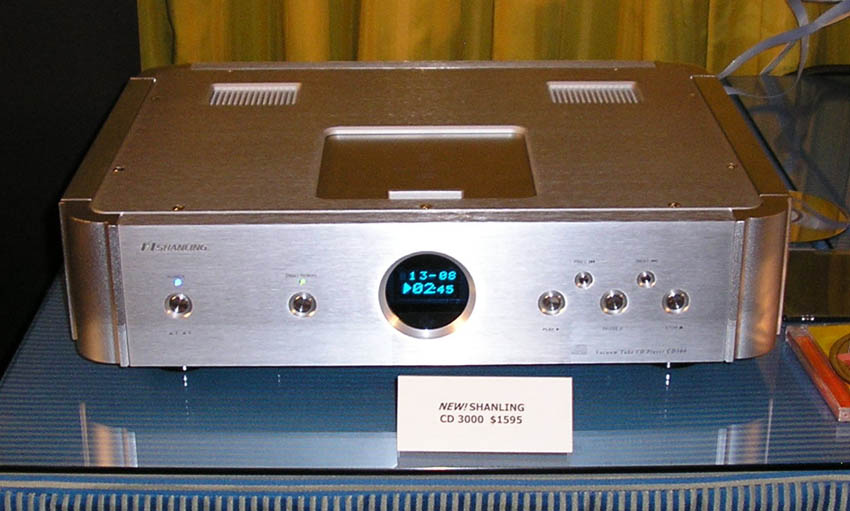

CD3000 CD PLAYER with tube outputs. $1,595; RCA and balanced outputs.
P1ayer is based on the most advanced Philips CD-PRO 2 linear tracking pick-up mechanism.
Top loading pick-up assembly is housed in a multiple anti-vibration construction.
All aluminum alloy chassis rests on the most rigid 3-point support.
NPC SM5847 from Japan is incorporated for over-sampling and filter.
Digital to analog conversion is performed by 8x Burr-Brown PCM1704K DAC.
four per channel connected in parallel for single-ended output and two per
channel connected in parallel for true differential balanced output.
I/V conversion and low pass filtering are performed by 12 x Burr-Brown OPA627 chips.
4 x Russian EH6922 tube with gold-plated legs provide unbalanced analog output.
Single-ended RCA and balanced XLR analog outnputs.
Coaxial RCA and balanced AES/EBU digital outputs.
Separate power supply unit feeds the player with clean DC power.
Specifications
Output level: 2.4V unbalanced, 4.4V balanced
Frequency response: 10 Hz ~ 20 KHz (-1dB) unbalanced
10 Hz ~ 20 KHz (-0.5dB) balanced
Total harmonic distortion + Noise: <0.8% unbalanced, <0.03 balanced
S/N Ratio: >105dB unbalanced, >115dB balanced (A-weighted)
Dynamic range: 100dB unbalanced, 112dB balanced
Channel separation: 100dB unbalanced, 110dB balanced
Dimensions (W x D x H): Player - 340mm x 340mm x 120mm
Power supply unit - 180mm x 377mm x 88mm
Net weight: Player - 12 lbs.
Power supply unit - 12 lbs.

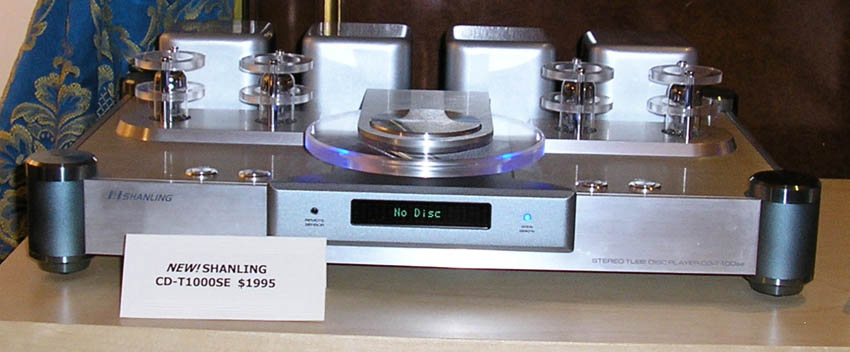

CD-T1000SE $1,995.
Player is based on the most advanced Philips CD1201 pick-up mechanism coupled with CD-7II servo system.
Top loading pick-up assembly is housed in custom aluminum alloy chassis.
Sturdy, elegant 4-cylinder-support presents tube electronics in unique and stylish aesthetics.
24-bit/192 KHz up-sampling is accomplished by SRC4193.
Digital to analog conversion is performed by 2 x Burr-Brown PCM1794 chips.
Specifications
Output level: 2.2V
Frequency response: 20 Hz ~ 20 KHz
S/N ratio: >110dB
Total harmonic distortion: <0.002%
Dynamic range: 115dB
Crosstalk: >100dB
Dimensions (W x D x H): 430mm x 290mm x 65mm
Net weight: 22 Lbs.

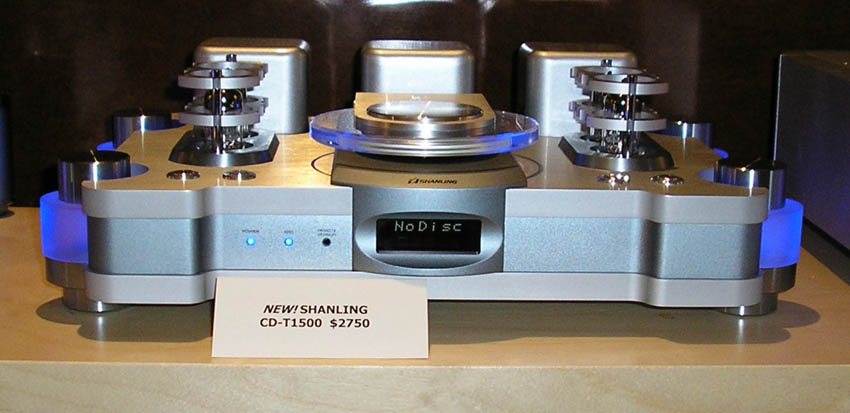

CD-T1500 CD PLAYER $2,750
Sturdy, elegant 4-cylinder-support presents tube electronics in unique and stylish aesthetics.
Player is based on the most advanced Philips CD-PRO 2 linear tracking pick-up mechanism.
Top loading pick-up assembly housed in a multi anti-vibration construction made of custom aluminum alloy chassis.
24-bit/192KHz up-sampling is accomplished by SRC4193.
Digital to analog conversion is performed by 2 x Burr-Brown PCM1794 DAC chip.
I/V conversion is performed by 12xBurr-Brown OPA604 chip.
Low pass filtering is performed by 2 x Analog Devices Ad627.
4 x Russian EH6922 tube with gold-plated legs provide unbalanced analog ouput.
Output level: 2.2V
Frequency response: 20 Hz - 20 KHz
S/N ratio: >110dB
Total harmonic distortion: <0.002%
Dynamic range: 115dB
Crosstalk: >100dB
Dimensions (W x D x H): 430mm x 290mm x 65mm
Net weight: 22 lbs.
